IP65 vandal resistance stainless steel 4x4 rugged metal keypad for ATM machine

Product Categories
NingBo chente electronics technologies.,co ltd
Contact Now

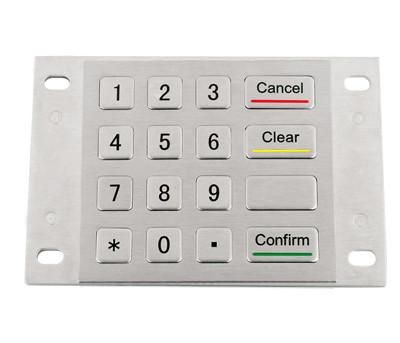

IP65 vandal resistance stainless steel 4x4 rugged metal keypad for ATM machine

Place of Origin : China

Brand Name : CT

Certification : CE

Model Number : CTKPS03-16

MOQ : 100

Price : 1

Packaging Details : carton

Delivery Time : 15 days

Payment Terms : TT or western union

Supply Ability : 3000 pcs per week

layout : 4x4

material : 304 stainless steel

travel : 0.45mm

life of span : 2000000 cycles

waterproof protection : IP65

application : telephone set,access control,security lock,industrial machine

weight : app 0.22kgs

Contact Now

please send us email at sales@chenttech.com for more .

Main Features:

Keypad made of high quality stainless steel,Customizable layout, dimension and installation design.

16 keys: 10 numeric keys and 6 function keys

Dustproof, waterproof, against corrosion,shake-proof, pickproof, drill-proof, bombproof,falling raining, splashing

hose-directed water and vandal resistant, operation under hostile environments.

IK Protection Class DIN EN 50102:IK07

Mechanical and Performance Data:

Switch Contact Material:Gold-on-Gold key switch technology with metal dome PCB.

Lettering: laser engraving

Front panel: brushed stainless steel

Wide voltage input: 5V DC

Key lifetime > 2,000,000 cycles per key

Force on keys: 2.0 N

Key travel: :0.45mm

Keypad layout:Matrix

Running lifetime > 5 years(without external power supply)

Interface:USB,PS/2, XH connector and male pins connector

Dimensions: 100.0*91.5 mm

Environment Requirements:

Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Operating temperature range: 0℃ - 60℃

Storage temperature range: –25℃ - 80℃

Relative humidity: 30%~90%

Atmospheric pressure: 60~106 KPaProtection Level: IP67(front panel)


Quality IP65 vandal resistance stainless steel 4x4 rugged metal keypad for ATM machine wholesale

IP65 vandal resistance stainless steel 4x4 rugged metal keypad for ATM machine Images
